- Place of Origin: Henan Zhengzhou
- Brand Name: Zhengzhou woo workers Mine Machinery Manufacturing
- Model Number: QTY3-35

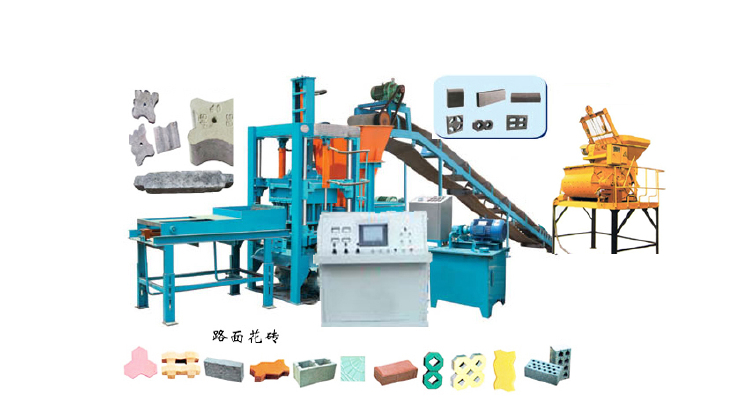

QTY3-35 hydraulic pad machine advanced design, material well. Since the beginning of the listing has been highly praised the majority of customers, all products are in short supply. The machine can switch to a different type of mold, producing a variety of products, such as concrete pads, steel pads, pad invisible bridge dedicated railway pads, cement components, decorative elements, European component, zinc alloy stirrup and so on. It can be described as a multi-purpose machines to meet the various needs of different industries. Let your minimum investment, maximum return.
QTY3-35 hydraulic pad machine technical parameters:
Mold box size (L × W × H) 660mm × 540mm × 30mm
Molded hollow blocks 200mm long 33
Molding cycle 10-15 seconds /
Hollow design production capacity of 63,360 200mm long / class 33 / A
Vibration frequency 4600 times / min -6100 beats / min
Exciting force 22KN
Vibrator power 6KW
Top of the cylinder rod diameter 80 × 300 40
Side cylinder rod diameter 63 × 250 40
Hydraulic system rated pressure 27.5MPa
Capacity 17.95KW
Pallet size 700mm × 535mm × 2mm
Machine weight 4160Kg
Machine Dimensions 6100mm × 3600mm × 2650mm
