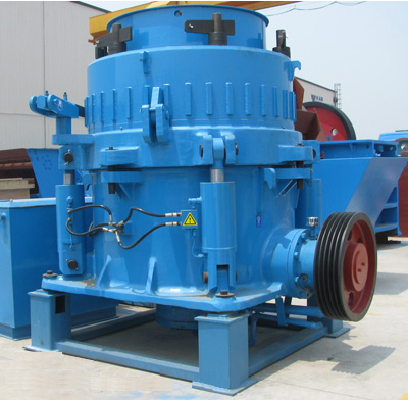

Cone crusher introduction:
    Cone crusher is widely used in mining industry, metallurgical industry, construction industry, road building industry, chemical industry and silicate industry, suitable for crushing hard and medium hard rocks and ores, such as iron ore, limestone, copper ore, quartz, granite, sandstone. Cone crusher has a crushing force, high efficiency, high handling capacity, low operation cost, easy adjustment and economic characteristics. Since the parts selection and structural design is reasonable, so long life, broken product particle size uniformity, reducing cycle load, medium and large size crusher, using a hydraulic clean cavity system, reduces downtime, and each specification crusher chamber multi-user according to different needs, choose a different cavity, in order to better adapt to user needs. This machine adopts grease sealing, to avoid the water supply and drainage system easy to plug the shortcomings and defects in water miscible oil, spring safety system is the overload protection device, it can be combined foreign body iron through the crushing chamber without damage crusher.

Cone crusher structure and the major parameters:
    Cone crusher main frame structure, the horizontal axis, moving cone, balancing wheel, eccentric sleeve, the crushing wall (fixed cone), under the crushing wall (fixed cone), fluid couplings, lubrication systems, hydraulic systems, several parts control system.

Cone crusher working principle:
    Cone crusher work, by rotation of the motor pulley or coupling, shaft and cone crusher cone crusher cone portion of the eccentric sleeve moving force of around one week under a fixed point for rotating pendulum motion. So that broken cone near the broken wall sometimes but sometimes leave adjust the sleeve mounted on the fixed roll mortar wall surface, the ore constantly under attack in the crushing cavity, squeezing and bending role in crushing ore achieved. Bevel gear drive motor through the eccentric sleeve rotation, so that broken cone for rotating pendulum motion. Sometimes close and sometimes broken left cone fixed cone, complete crushing and nesting. Support sleeve and the frame body connection by spring-loaded, when the piece of metal falling within the crusher, and other objects can not be broken, that is deformed by compression springs discharged foreign body to achieve insurance, to prevent damage to the machine.
Cone crusher foreign body can not break through the crushing chamber or for some reason the machine overloaded, cone crusher spring safety system to achieve insurance, port of discharge cone crusher increased. Foreign matter from the exhaust cone crusher chamber, such as foreign body stuck in the system can use the clear cavity discharge zone, the exhaust mine continues to increase, so that foreign matter discharge cone crusher chamber. Cone crusher in the spring under the effect of discharge mine mouth automatically reset, cone crusher machine back to normal work. Crushing cavity surface covered with wear-resistant high manganese steel liner. Pai mine mouth size hydraulic or manual adjustments.
Cone Crusher Features:
    1. This machine is compact structure, high production efficiency, the use of high precision bearings bowl reserves and centralized lubrication system, when you need to adjust the size of the discharge opening can be adjusted via hydraulic station started pushing cylinder, when it is not when broken material into the crushing chamber, the spring safety devices to protect equipment from damage.
    2. The machine adopts grease sealing way to avoid improper operation caused by the phenomenon of mixing water and oil, when the seals wear, due to the action of the spring, automatic compensation, the seal still attached together, continue to play a sealing function, when when the seal wear is about 1 / 4-1 / 3 of the original thickness, it is necessary to replace the seal.
